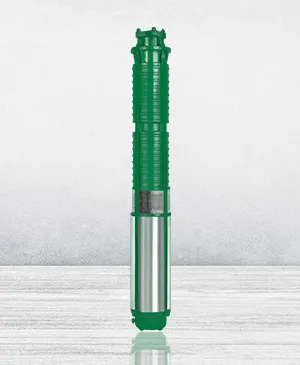

Subsevak
- Class B Motor Insulation ensures continuous running in high temperature conditions.
- Motor body is made of SS which is corrosion free.
- Suitable for 6 inch Borewell, Open-well & Water tanks.
- Specially designed sheet metal impeller 202 grade or steel cast impeller provides sustainable hydraulic performance.
- Easy to Handle, Install, Dismantle and Rewind.
| Power Range | 1.0 - 3.0 HP |
| Max. Flow Rate | 60 m3/hr |
| Max. Head | 132 m |
| Max. Liquid Temperature | 33℃ |
| Max. Operating Pressure | 12 bar |

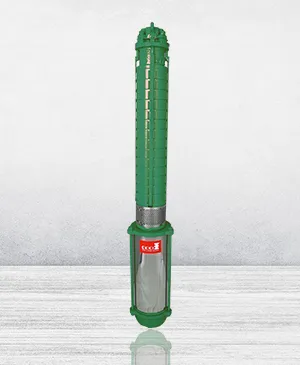

VOK
- High discharge and High head.
- Motor body is made of SS which is corrosion free.
- Easy to Handle, Install, Dismantle and Rewind.
| Power Range | 1.0 - 2.0 HP |
| Max. Flow Rate | 4.2 m3/hr |
| Max. Head | 130 m |
| Max. Liquid Temperature | 33℃ |
| Max. Operating Pressure | 14 bar |
VOS
- Pump and motor is coupled for easy installation and maintenance.
- Rotor is made of copper for heavy duty applications.
- Motor body is made up CI with cooling fins prevents from over heating.
- Copper winding requires minimal inspection and maintenance.
| Power Range | 3.0 - 7.5 HP |
| Max. Flow Rate | 132 m3/hr |
| Max. Head | 188 m |
| Max. Liquid Temperature | 33℃ |
| Max. Operating Pressure | 21 bar |

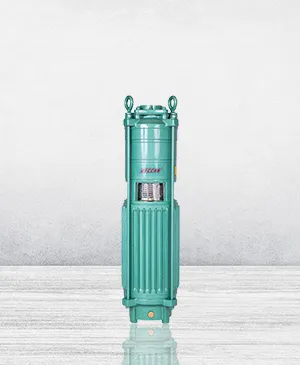

VOSVR
- Total hardened SS shaft.
- Fins body for better heat dissipation.
- Rotor made of 99.9% EC grade copper.
- Dual casing available for in radial flow for different duty conditions.
| Power Range | 3.0 - 7.5 HP |
| Max. Flow Rate | 54 m3/hr |
| Max. Head | 77 m |
| Max. Liquid Temperature | 33℃ |
| Max. Operating Pressure | 15 bar |
VOM
- Can pump water through long distances.
- Total hardened SS shaft for specific model.
- Fins body for better heat dissipation.
- Special winding design for low and high voltage operations.
- Rotor made of 99.9 EC grade copper.
| Power Range | 10.0 - 20.0 HP |
| Max. Flow Rate | 264 m3/hr |
| Max. Head | 338 m |
| Max. Liquid Temperature | 33℃ |
| Max. Operating Pressure | 38 bar |

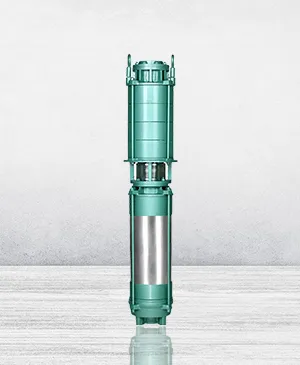

VOML
- Elegantly constructed SS body.
- Rotor made of 99.9 EC grade copper.
- Motor and pump coupled together.
- SS & Bronze impeller for selective models.
- Easy to Handle, Install, Dismantle and Rewind.
| Power Range | 25.0 - 45.0 HP |
| Max. Flow Rate | 360 m3/hr |
| Max. Head | 268 m |
| Max. Liquid Temperature | 33℃ |
| Max. Operating Pressure | 31 bar |

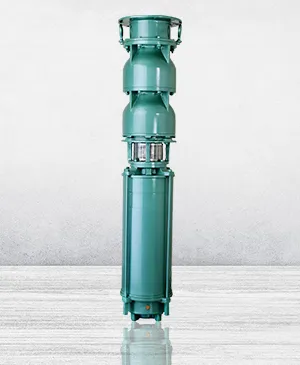

VOL
- High discharge and High head.
- Rotor made of 99.9 EC grade copper.
- Fast discharge variant from low to high.
- Total hardened SS shaft.
- Easy to Handle, Install, Dismantle and Rewind.
| Power Range | 50.0 - 90.0 HP |
| Max. Flow Rate | 600 m3/hr |
| Max. Head | 265 m |
| Max. Liquid Temperature | 33℃ |
| Max. Operating Pressure | 29 bar |
