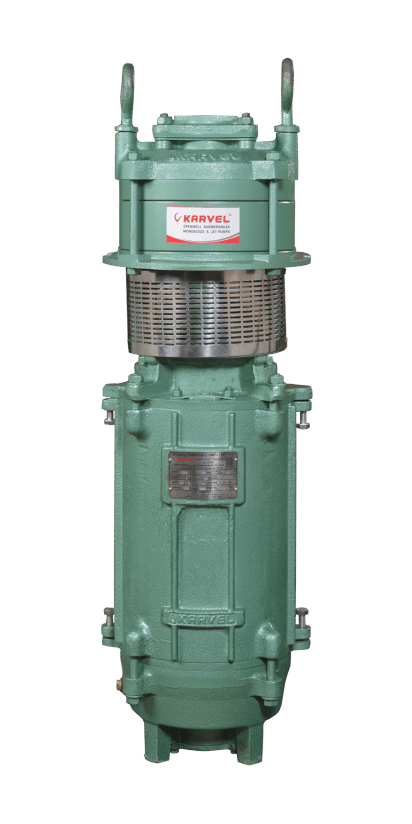

Vertical Openwell Submersibles - CHOTTU SERIES
Used in Flood irrigation, Drip irrigation, Rain guns, Fire fighting, washing, water supply schemes.
Technical Specification:
- Delivery upto 1200 lpm.
- Head upto 150 Meter.
- Motor rating - 2.2 kW (3 HP) - 5.5 kW (7.5 HP).
- Maximum quantity of sand particles 50g/cu.mtr.
- Max size of soiled particles - ‘10’mm.
- Delivery port - 50mm, 65mm, 75mm, 100mm.

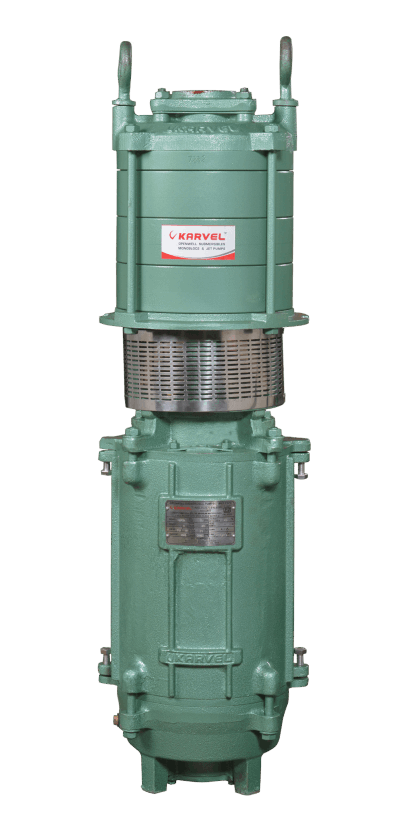

Vertical Openwell Submersibles “MEDIUM SERIES"
Used in flood irrigation, River water pumping, dams, mines dewatering, demistification, long distances pumping, water supply schemes and steel rolling mills.
Technical Specification:
- Delivery upto 7500 lpm.
- Head upto 400 Meters.
- Motor rating - 18 kW (25 HP) - 90 kW (125 HP).
- Copper rotor.
- Maximum quantity of sand Particles 50 g/cu.mtr.
- Max size of soiled particles - 15’mm.
- Delivery port - 50mm, 75mm, 100mm, 150mm

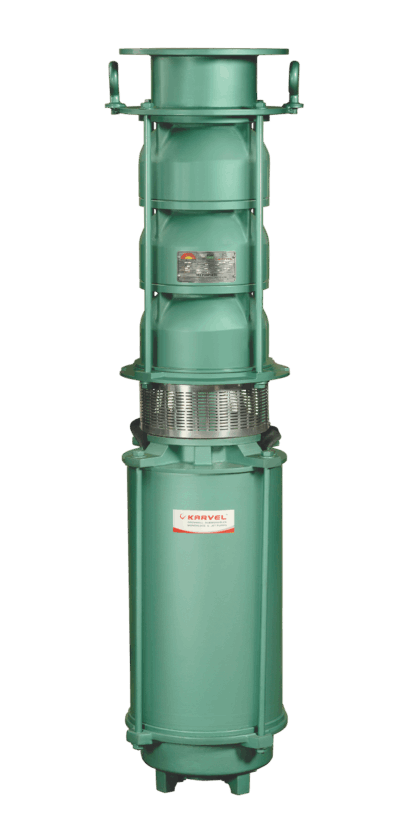

Vertical Openwell Submersibles “BIG SERIES"
Used in flood irrigation, River water pumping, dams, mines dewatering, demistification, long distances pumping, water supply schemes and steel rolling mills.
Technical Specification:
- Delivery upto 7500 lpm.
- Head upto 400 Meters.
- Motor rating - 18 kW (25 HP) - 90 kW (125 HP).
- Copper rotor.
- Maximum quantity of sand Particles 50 g/cu.mtr.
- Max size of soiled particles - 15’mm.
- Delivery port - 50mm, 75mm, 100mm, 150mm.
Vertical Openwell Submersibles “KAM SERIES"
Used in Bulk water pumping, Mines dewatering, Dams, Ponds, Lakes, River water pumping and cooling towers.
Technical Specification:
- Delivery upto 20000 lpm.
- Head upto 50 Meters.
- Motor rating - 2.2 kW (3 HP) – 90 kW (125 HP).
- Copper rotor.
- Maximum quantum of sand Particles 100 g/cu.mtr.
- Max size of soiled particles - ‘20’mm.
- Delivery part – 75mm, 100mm, 150mm, 200mm, 250mm, 300mm.

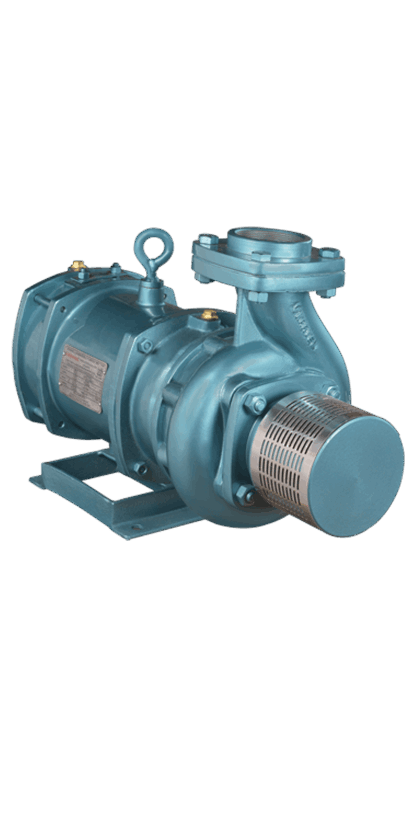

Horizontal Openwell Submersible Pumps 3 PHASE
Karvel Horizontal openwell submersible pumpsets are of cast iron construction. The motor is of wet submersible type with water cooled windings and water lubricated bearings. These pumps are used predominantly in agriculture for irrigation . These pumps are available in regular and value ranges.
Technical Specification:
- Delivery upto 3000 lpm.
- Head upto 50 meter.
- Motor rating - 2.2kW (3 HP) to 11kW(15 HP) - 3 Phase.
- Copper rotor.
- Maximum quantity of sand particles – 50 g/cu.mtr.
- Maximum size of solid particles – 8mm.
- Delivery port: 40mm, 50mm, 65mm, 75mm, 100mm.

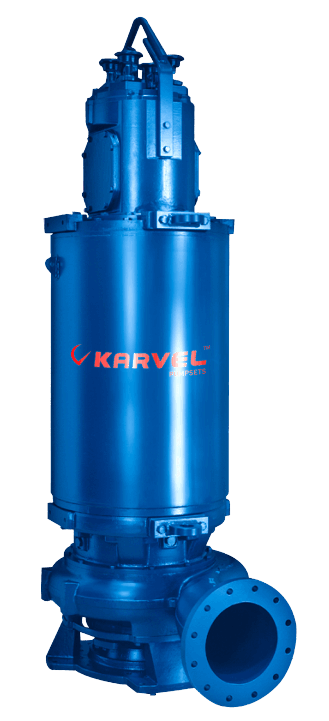

Non Clog Sewage pumpsets:
The "KNCS" series is a single stage non clog submersible centrifugal pump of closed coupled vertical (monoblock type) construction. These series of pumps are available with various type of impeller like single vane impeller, two vane impeller, three vane impeller, free flow type, vortex type. These pumps are available with portable & stationary installation. The "KARVEL" make submersible motor is pressure resistant with internal sealed double mechanical shaft seal in a oil filled chamber. Motor sealing is by a wear resistant mechanical shaft seal independent of the direction on rotation. The motor is equipped with two maintenance free ball bearing. The upper and lower bearing are filled with high quality grease possibility. All casing parts are of cast iron, shaft and hardware are of stainless steel. The motor is suitable for continuous operation (S1) under fully loaded condition.
Technical Specification:
- Delivery upto 13000 lpm.
- Head upto 45 meter.
- Motor rating - 2.2 kW (3 HP) - 45 kW (60 HP) - 3 Phase. 0.75 kW (1 HP) - 2.2 kW (3 HP) - 1 Phase.
- Larger ball bearings.
- Dynamically balanced rotors.
- Mechanical seal option - standard is gland packing.
- Delivery pipe: 40mm, 50mm, 65mm, 75mm, 100mm, 150mm, 200mm

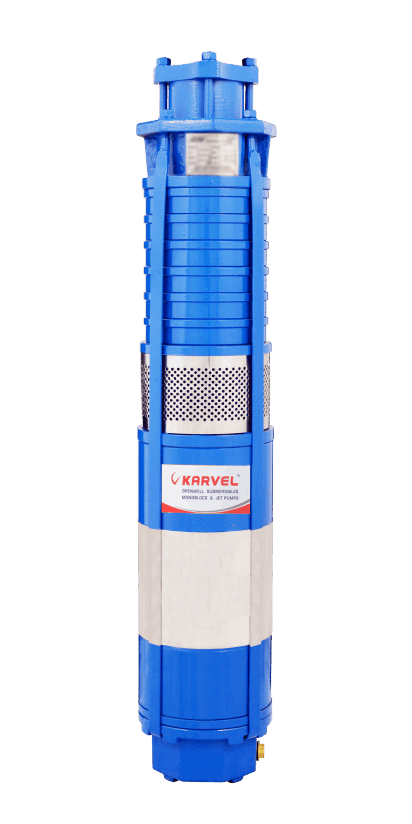

Vertical openwell 'Close Coupled' Submersible 'VAMAMA' Series 1 Phase / 3 Phase
Karvel close coupled openwell pumpsets are wet water lubricated type. The motor shell is of stainless steel and pump is with bronze/stainless steel impellers. Supports are made of stainless steel. Radial and mixed flow constructions are available. These pumps can pump upto heads of 130 meters.
Technical Specification:
- Delivery upto 1000 lpm.
- Head upto 130 meter.
- Motor rating - 0.37kW (0.5 HP) to 2.2kW (3 HP) - 1 Phase / 3 Phase.
- Copper rotor.
- Maximum quantity of sand particles - 50 g/cu.mtr.
- Maximum size of solid particles - 10mm.
- Radial flow and mixed flow constructions.
- Delivery port: 25mm, 32mm, 40mm, 50mm, 65mm, 75mm

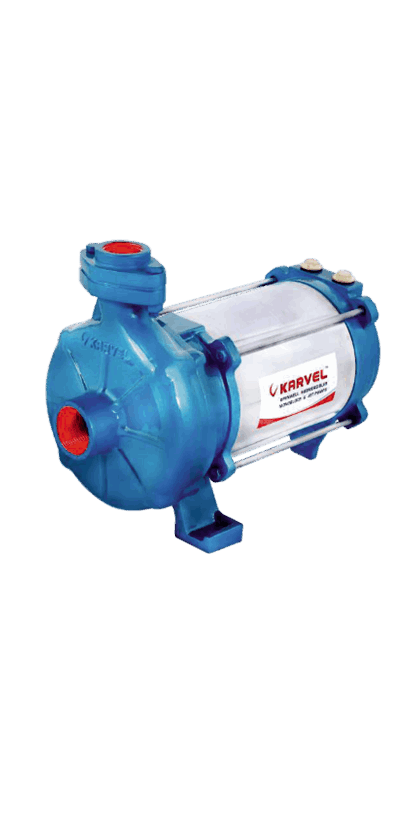

Horizontal Openwell Pumpsets "CHUTTI SERIES"
These openwells are specially designed pumps for use in bungalows and small domestic buildings. These pumps offer the highest head in its class and are of unique design. The copper construction ensures minimum power consumption and maximum performance.
Technical Specification:
- Delivery upto 200 lpm.
- Head upto 35 meter.
- Motor rating - 0.37kW (0.5 HP) – 1 Phase / 3 Phase.
0.75kW (1.0HP) – 1 Phase / 3 Phase. - Copper rotor.
- Maximum quantity of sand particles – 50 g/cu.mtr.
- Delivery port: 25mm.
- Compactible for pressure boosting system upto 20 starts / hour with minimum 3 minutes interval.

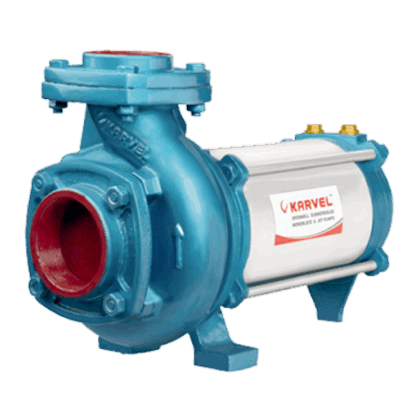

Horizontal Openwell Pumpsets "DOMESTIC SERIES"
Horizontal openwell pumpsets domestic series are made up of special materials with wet type water lubricated motor. These pumps find application in individual homes, bungalows and small farms.
Technical Specification:
- Delivery upto 900 lpm.
- Head upto 30 meter.
- Motor rating: 0.37kW (0.5 HP) – 1 Phase
0.50kW (1.0HP) – 1 Phase
1.1kW (1.5HP) – 1 Phase / 3 Phase
1.5kW (2.0HP) – 1 Phase / 3 Phase. - Copper rotor.
- Maximum quantity of sand particles - 50 g/cu.mtr.
- Delivery port: 25mm, 32mm, 40mm, 50mm, 65mm, 75mm.
- Maximum size of solid particles - 5mm
Double Stage Openwell Submersible Pumps
These pumpsets with double stage design are of unique construction. The double stage provides head of upto 60 meters. These pumpsets with copper rotors ensure minimum power consumption and maximum performance.
Technical Specification:
- Delivery upto 250 lpm.
- Head upto 60 meter.
- Motor rating : 0.75kW (1.0HP) - 1 Phase / 3 Phase
1.1kW (1.5HP) - 1 Phase / 3 Phase
1.5kW (2.0HP) - 1 Phase / 3 Phase. - Copper rotor.
- Maximum quantity of sand particles - 50 g/cu.mtr.
- Delivery port: 25mm, 32mm.
- Maximum size of solid particles - 5mm.
Self Priming Pumps 'Whiz' Series
The self-priming pumps are designed to provide trouble free operations for a longer period of time. Superior quality ball bearings are used with highest grade stainless steel shafts. These pumps are fitted with thermal overload protection to protect against winding damage. These pumps are available in regular flow and big flow.
Technical Specification:
- Delivery upto 4000 lpm.
- Head upto 25 meter.
- Motor rating : 0.37kW (0.5 HP) - 1 Phase
0.75kW (1.0HP) - 1 Phase. - Carbon ceramic mechanical seal.
- Super enamelled copper winding.
- Delivery port: 25mm
